Product Description

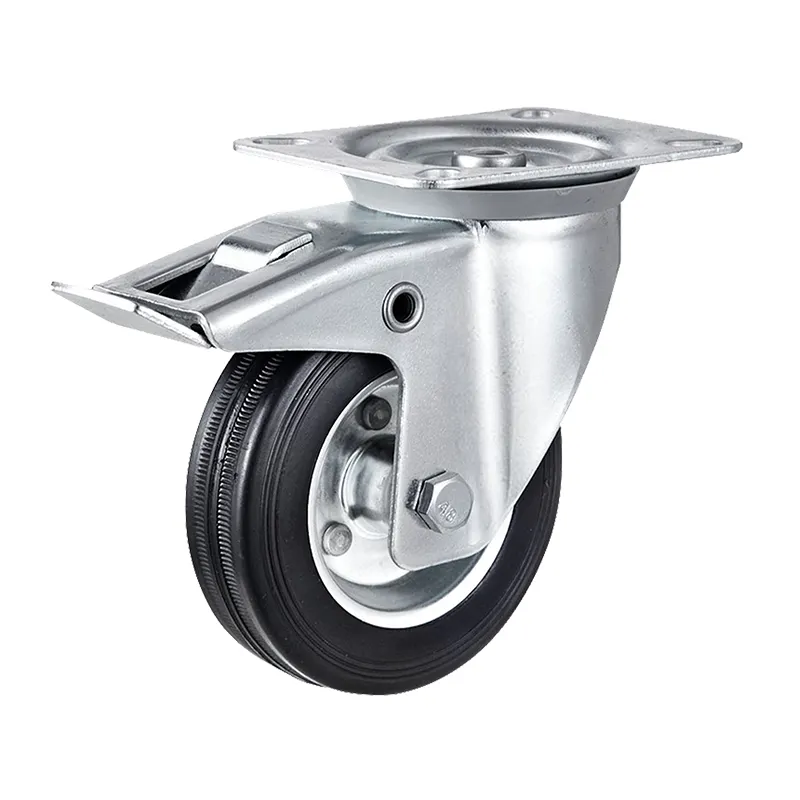

The 6-inch European-type industrial caster is engineered for durability and versatility, combining a pressed steel core rubber wheel with a sturdy zinc-plated steel bracket. Designed for medium-duty applications, each caster supports up to 150 kg, making it perfect for equipment like tool carts, storage racks, and mobile workstations in industrial and commercial settings. The 40 mm wide wheel, equipped with roller bearings, ensures smooth and quiet operation, while the non-marking rubber tire protects floors such as linoleum, tile, carpet, concrete, hardwood, and epoxy-coated surfaces. The integrated brake provides secure locking for safety and stability. With an overall height of 191 mm and a top plate mounting system (135×110 mm, hole spacing 105×80 mm), installation is straightforward. Certified to ISO 9001 and RoHS standards, this caster meets stringent quality and environmental requirements, including compliance with EN 12531 for industrial wheel performance. Its temperature range of -4°F to 158°F (-20°C to 70°C) ensures reliable performance in diverse conditions, from cold storage to warm manufacturing floors.
Applications: Ideal for use in warehouses, manufacturing plants, retail stockrooms, medical facilities, and food service environments. These casters excel in moving heavy equipment, shelving units, and carts, offering stability and maneuverability in dynamic workspaces.
Specifications
| Feature | Specification |
|---|---|
| Wheel Diameter | 6 inches (152 mm) |
| Wheel Width | 40 mm |
| Wheel Material | Pressed Steel Core with Rubber Tire |
| Bearing Type | Roller Bearings |
| Load Capacity | 150 kg per caster |
| Bracket Material | Steel with Zinc-Plated Finish |
| Overall Height | 191 mm |
| Mounting Type | Top Plate (135×110 mm) |
| Hole Spacing | 105×80 mm |
| Hole Size | 9.2×13 mm |
| Floor Surface Compatibility | Linoleum, Tile, Carpet, Concrete, Hardwood, Epoxy-Coated Floors |
| Non-Marking | Yes |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Certifications | ISO 9001, RoHS, EN 12531 Compliant |
| Brake | Yes |
