Product Description

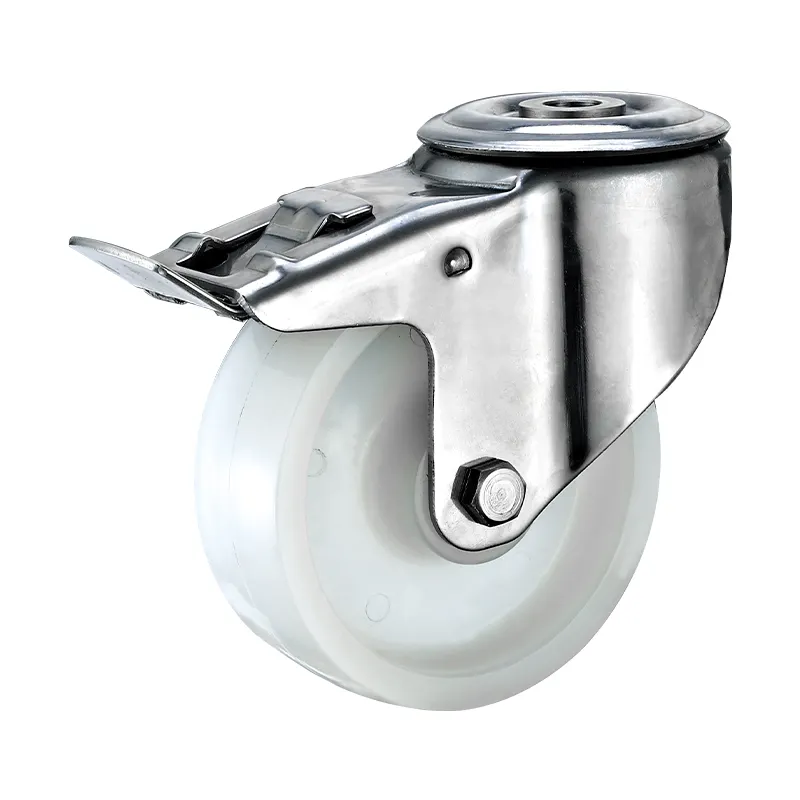

Our 5-inch stainless steel bracket caster with total brakes is engineered for superior performance in demanding environments. The caster bracket, made from high-quality SUS304 stainless steel, offers exceptional corrosion resistance, making it perfect for medical, food service, and industrial applications. The 35mm wide white nylon (PA6) wheel, equipped with a stainless steel roller bearing, delivers smooth and reliable mobility with a robust 150 kg load capacity per caster. With an overall height of 150 mm and a 13mm single bolt hole, installation is straightforward. This caster is non-marking and compatible with multiple floor types, including linoleum, tile, carpet, and concrete. It operates efficiently in temperatures ranging from -4°F to 158°F (-20°C to 70°C) and complies with ISO 9001, RoHS, and FDA standards for medical equipment, ensuring safety and reliability.
Specifications
| Feature | Specification |
|---|---|
| Wheel Diameter | 5 inches |
| Bracket Material | SUS304 Stainless Steel |
| Wheel Material | White Nylon (PA6) |
| Wheel Width | 35 mm |
| Bearing Type | Stainless Steel Roller Bearing |
| Load Capacity | 150 kg per caster |
| Overall Height | 150 mm |
| Bolt Hole Size | 13 mm |
| Floor Surface Compatibility | Linoleum, Tile, Carpet, Concrete |
| Marking | Non-marking |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Certifications | ISO 9001, RoHS, FDA compliant for medical equipment |
