Product Description

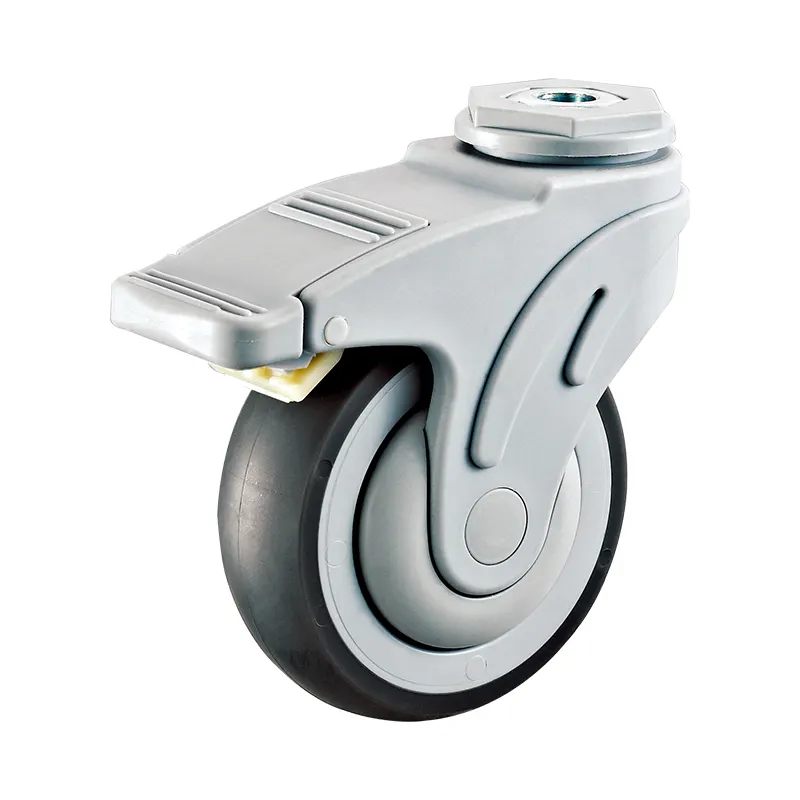

Engineered for medical equipment, the 3-inch Medical Total Brake Caster combines strength, versatility, and compliance with industry standards. The caster’s PA6 nylon bracket offers exceptional durability, while the PP wheel core and TPR tire provide smooth, quiet movement without leaving marks on floors. With a 32mm wheel width and precision sealed ball bearings, it delivers reliable performance under a 70 kg load per caster. Its 120mm overall height and 13mm single bolt hole ensure easy installation. Suitable for a variety of surfaces, including linoleum, tile, carpet, and concrete, this caster operates effectively in temperatures ranging from -4°F to 158°F (-20°C to 70°C). Certified to ISO 9001, RoHS, and FDA standards, it guarantees quality and safety for medical applications.
Product Specifications
| Feature | Specification |
|---|---|
| Wheel Diameter | 3 inches (76 mm) |
| Wheel Width | 32 mm |
| Overall Height | 120 mm |
| Load Capacity | 70 kg per caster |
| Bracket Material | PA6 (Nylon) |
| Wheel Core Material | PP (Polypropylene) |
| Wheel Tire Material | TPR (Thermoplastic Rubber) |
| Bearing Type | Precision Sealed Ball Bearing |
| Bolt Hole Size | 13 mm |
| Weight | 0.4 kg per caster |
| Floor Compatibility | Linoleum, Tile, Carpet, Concrete |
| Marking | Non-marking |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Certifications | ISO 9001, RoHS, FDA Compliant |
