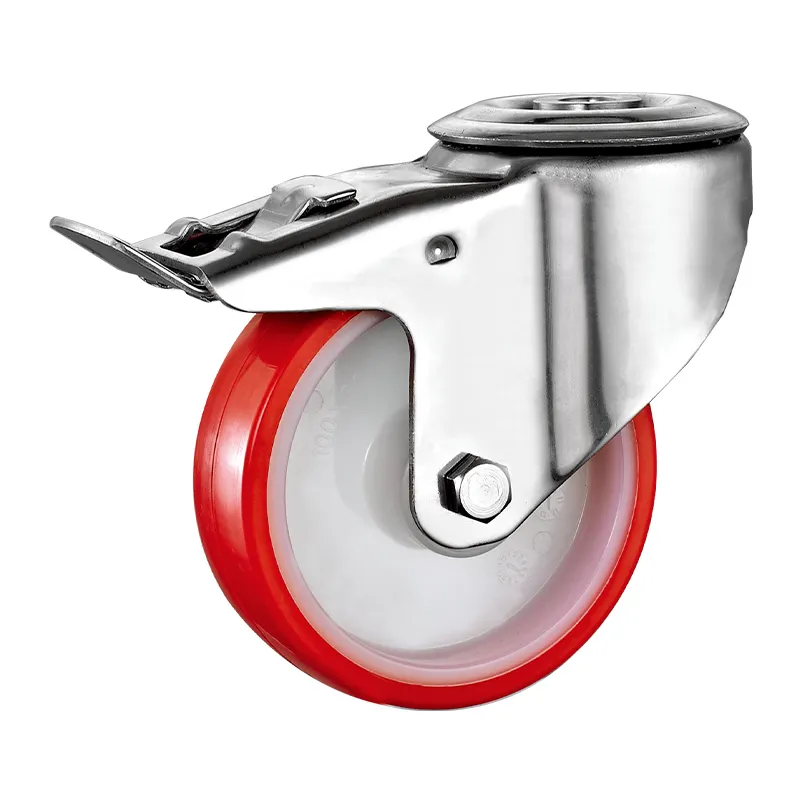

Product Description
The 125mm SUS 304 Stainless Steel Brake Swivel Caster is a premium choice for demanding environments requiring robust, corrosion-resistant mobility solutions. Crafted from high-grade SUS 304 stainless steel with a 2.5mm thick polished bracket, this caster combines aesthetic appeal with exceptional durability. Its total lock brake system ensures secure positioning, making it perfect for dynamic industrial applications.
The wheel features a polyamide (PA) core paired with a non-marking polyurethane tire, delivering excellent load-bearing capacity of 150kg per caster while protecting floors like linoleum, ceramic tiles, low-pile carpets, concrete, and even epoxy-coated surfaces. Stainless steel roller bearings guarantee smooth, low-friction movement, enhancing maneuverability in tight spaces. With an overall height of 153mm and a single bolt hole mounting (12.2mm), installation is straightforward and versatile.
Designed to withstand harsh conditions, this caster operates efficiently in temperatures ranging from -4°F to 158°F (-20°C to 70°C), making it suitable for cold storage, food processing plants, pharmaceutical facilities, and outdoor industrial settings. Certified to ISO 9001 and RoHS standards, it meets stringent quality and environmental requirements.
Application Scenarios
- Food and Beverage Industry: Ideal for trolleys and equipment in kitchens, breweries, and processing plants due to its corrosion resistance and hygiene-friendly materials.
- Pharmaceutical and Medical Facilities: Ensures clean, non-marking mobility for carts and storage units in sterile environments.
- Industrial Warehouses: Perfect for heavy-duty material handling on varied floor surfaces, including concrete and epoxy coatings.
- Marine and Outdoor Settings: Resists rust and corrosion, making it suitable for coastal warehouses or outdoor trolleys.
- Retail and Hospitality: Provides smooth, quiet movement for display racks and service carts on carpeted or tiled floors.
Specifications
| Feature | Specification |
|---|---|
| Wheel Diameter | 125mm |
| Wheel Width | 35mm |
| Material | SUS 304 Stainless Steel (Bracket), PA Core, Polyurethane Tire |
| Bracket Thickness | 2.5mm |
| Finish | Polished |
| Bearing Type | Stainless Steel Roller Bearings |
| Load Capacity | 150kg per caster |
| Overall Height | 153mm |
| Mounting Type | Single Bolt Hole (12.2mm) |
| Brake Type | Total Lock Brake |
| Floor Compatibility | Non-marking, suitable for linoleum, tile, low-pile carpet, concrete, epoxy-coated surfaces |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Certifications | ISO 9001, RoHS Compliant |
